By Pass Glass Tube Rotameter

SEND ENQUIRY

P.S. Instruments are the leading manufacturer,supplier, exporter of By Pass Glass Tube Rotameter (rotameters) in Mumbai , India. PS make High accuracy By Pass Glass Tube Rotameter.

Our range of By Pass Glass Tube Rotameter is widely acknowledged for their accuracy, reliability and long service life. Available in different ranges, our range comes with various accessories such as DP regulator, panel mounting clamps and high & low flow alarms. These products from our side are suitable for purging or low flow rate of air or liquid measurement.

Features:

Heavy duty design
Easy to replace
Powder coated

Applications:

Scientific laboratory
Research centres
Chemical industries

Specifications

Pressure Ratings: 40 Bar
Temperature Ratings: - 20º C to 250º C
Connections: Flanged OR Screwed
Suitable for larger pipeline of 50 NB to 450 NB
The Flowrate through the Rotameters is proportional to the pressure drop across the orifice plate
Available in SS-316/ SS-304/P.P material
Accuracy=2% FSD
High & Low flow Switches on request

Operating Principle

Differential pressure ‘P’ is created in the main Flow by providing an Orifice plate in the main pipeline.
Because of this ‘P’ a branch of flow moves through By-Pass line provided across the orifice plate from up stream side to down stream side of the Orifice Plate.
Additional Range Orifice plate is provided in the By-Pass line which is designed such that flow through range Orifice plate flows in proportion with the flow through main orifice plate.
Hence by measuring the flow from By Pass line we can estimate the flow from Main Pipe line.

Standard Features

Easy to Maintain
On - Line Installation
Most Economical,Low Cost
Pipe Size - 40 NB to 300 NB
For High Flow - 8M / Hr. To 1500M / Hr.
Two tone powder coated excellent finish
No threads, No leakage, Avoids corrossions
Rangeability - 1:10 2 : 10
Heavy duty design with maximum visibility
Various options for material of construction of wetted parts

Maximum Flow And Pressure Loss

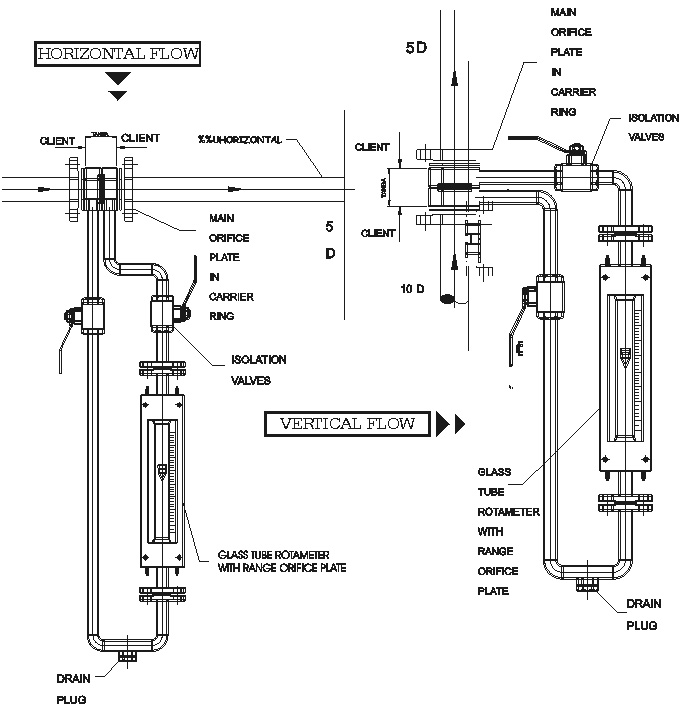

By Pass Rotameter :- Just Insert Model.

As indicated in the name you have to just insert the entire assembly in the pipe line between the two flanges.

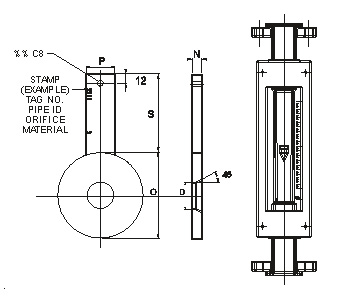

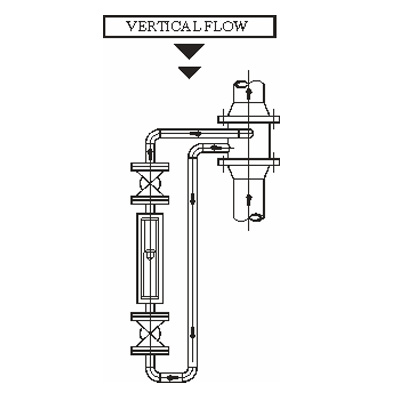

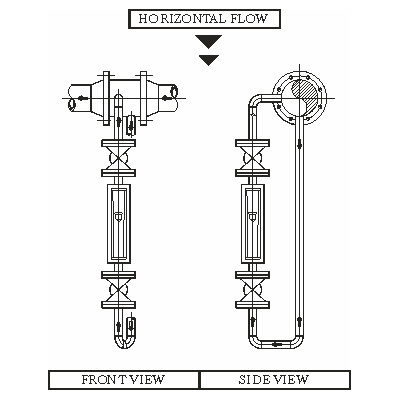

By Pass Rotameter :-Site Assembly Model

This is an ecconimical model which consists of
1) Main Orifice Plate
2) Glass Tube Rotameter
3) Range Orifice Plate
